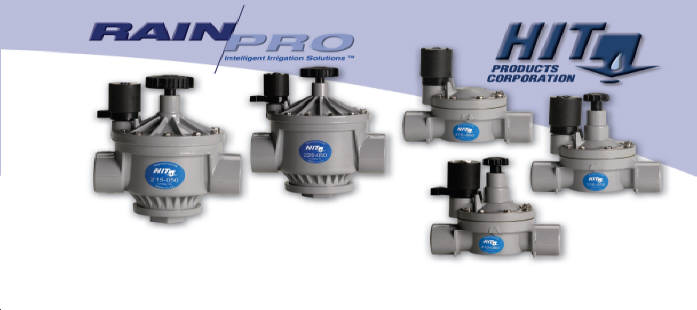

Available in 1", 1½", and 2" sizes, BSP threads
Virgin PVC material construction
Internal manual bleed lever standard on all valves
Heavy duty diaphragm
Manual bleed can be removed for "tamper proof" operation
Flow range from 5 to 120 GPM
1½" and 2" provided with both bottom (angle) or side inlet
All stainless steel fasteners and components
24 VAC 50 Hz solenoid design for sandy water conditions
1" available with or without flow control stem
1½" and 2" standard with flow control stem
Operating pressure range from 10 PSI to 150 PSI
Suitable for residential and commercial applications
1" Flow: 5 - 30 GPM / 3 -115 l/min
1 1/2" Flow: 5 - 80 GPM / 18 - 305 l/min
2" Flow: 5 - 120 GPM 18 - 455 l/min)
Operating pressure: 15 to 150 PSI / 1 to 10,3 bars; 103 to 1035 kPa
Recommended velocity not to exceed 5 fps
Electrical
24 VAC standard
Inrush: 350 mA
Holding: 250 mA
Cycles: 50 Hz
