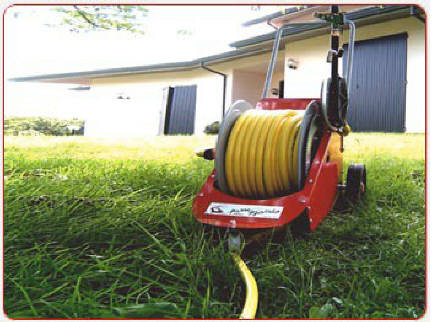

Irri-sport 25

Fully automatic self travelling sprinkler for smaller sports grounds, tennis courts, cricket squares and bowling greens

Automatic operation
1 The Irri-sport is positioned at the start of the run.
2 The 25m hose is pulled out and laid along the track you wish the machine to travel.
3 Connect the hose to the water supply.
4 Set the point you want the Irri-sport to stop with the shut off unit.
5 Turn on the water, the Irri-sport will travel along the hose reeling it in as it goes until it reaches the stop, when the water is cut off and the Irri-sport stops.

Innovative turbine drive system means no wasted water, unlike piston drive types.

Operates at low pressure between 2 - 4 bar

Full circle and part circle sprinklers provided

25M of 19mm hose included

Please note this machine is supplied flat packed for self assembly

Performance

Pressure                     Capacity                       Sprinkling width                     Rewind speed
2-4 bar                    10 - 15 lt./min                    min. 6 - max. 12
                              0,6 - 0,9 m3/h                                                               min. 10 - max. 20 m/h
30 - 60 psi                3,30 gallon/min.              min.16 - max. 26 m.
