Products

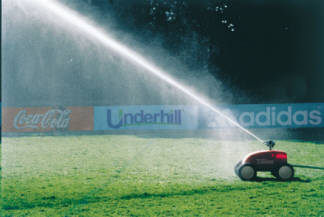

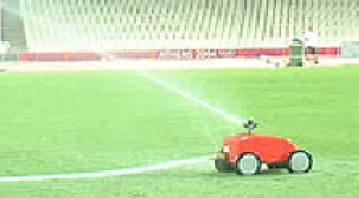

Tracker 100
Considered the most versatile travelling
sprinkler on the market. The Tracker irrigates independently of any irrigation system installed.. It'll even shut off and stop automatically.
Ideal for large areas that need to be watered such as, stadiums, sports fields, temporary greens, turf nurseries, riding paddocks or dressage arenas.
Maintenance free:
The sealed gear box creates very little friction and is therefore virtually maintenance free.
Turf friendly:
Using the part circle ZE sprinkler you can guarantee the Tracker will always travel on dry ground reducing the risk of tire marks.
Adjustable speed of operation:
10 to 20 meters per hour.
Operating pressure:
Minimum 50psi
Water consumption:
50 litres / min
Considered the most versatile travelling
sprinkler on the market. The Tracker irrigates independently of any irrigation system installed.. It'll even shut off and stop automatically.
Ideal for large areas that need to be watered such as, stadiums, sports fields, temporary greens, turf nurseries, riding paddocks or dressage arenas.
Maintenance free:
The sealed gear box creates very little friction and is therefore virtually maintenance free.
Turf friendly:
Using the part circle ZE sprinkler you can guarantee the Tracker will always travel on dry ground reducing the risk of tire marks.
Adjustable speed of operation:
10 to 20 meters per hour.
Operating pressure:
Minimum 50psi
Water consumption:
50 litres / min
Multipurpose:
The full and part circle adjustment allows the Tracker to travel along the edges of the playing area whilst irrigating the centre.
Speed variation:
Full speed adjustment regulates the water flow for the varying applications can be adjusted to suit each application
Uniform water distribution:
Combined with the distribution pattern of the ZE sprinkler and constant speed of the Tracker you can guarantee optimal water distribution.
The full and part circle adjustment allows the Tracker to travel along the edges of the playing area whilst irrigating the centre.
Speed variation:
Full speed adjustment regulates the water flow for the varying applications can be adjusted to suit each application
Uniform water distribution:
Combined with the distribution pattern of the ZE sprinkler and constant speed of the Tracker you can guarantee optimal water distribution.
TECHNICAL DATA
Travelling speed 10 to 20 m/h
Operating pressure min. 3,5 bar at unit
Flow rate 3,0 m³/h
Width of irrigation 28 - 36 m
Length of irrigation 120 m
Material Alu, brass, plastic
Overall measurements 77 x 47 x 40 cm
Total weight 33,0 kg
Hose Size 1", length 100 m
Sprinkler ZE 30 W, nozzle 7 mm
Casting range 19 m at 4 bar at the sprinkler
Irrigation modus two irrigation runs for 1 football pitch
Precipitation density 6,5 - 9 l/m , according to the speed
Travelling speed 10 to 20 m/h
Operating pressure min. 3,5 bar at unit
Flow rate 3,0 m³/h
Width of irrigation 28 - 36 m
Length of irrigation 120 m
Material Alu, brass, plastic
Overall measurements 77 x 47 x 40 cm
Total weight 33,0 kg
Hose Size 1", length 100 m
Sprinkler ZE 30 W, nozzle 7 mm
Casting range 19 m at 4 bar at the sprinkler
Irrigation modus two irrigation runs for 1 football pitch
Precipitation density 6,5 - 9 l/m , according to the speed
Hose trolley
Heavy duty professional hose trolley for proper storage and safe transport of hose:
The robust hose trolley, is made of steel, plastic coated in red and black colour, with 1" brass coupling connection
Width of the reel, 390 mm, Max. Capacity 100 m 1" hose reeled in layers.
Two pneumatic plastic tyres.
Dimensions: 75x75x80 cm
Heavy duty professional hose trolley for proper storage and safe transport of hose:
The robust hose trolley, is made of steel, plastic coated in red and black colour, with 1" brass coupling connection
Width of the reel, 390 mm, Max. Capacity 100 m 1" hose reeled in layers.
Two pneumatic plastic tyres.
Dimensions: 75x75x80 cm
